Infrared.
Specified.
Delivered.

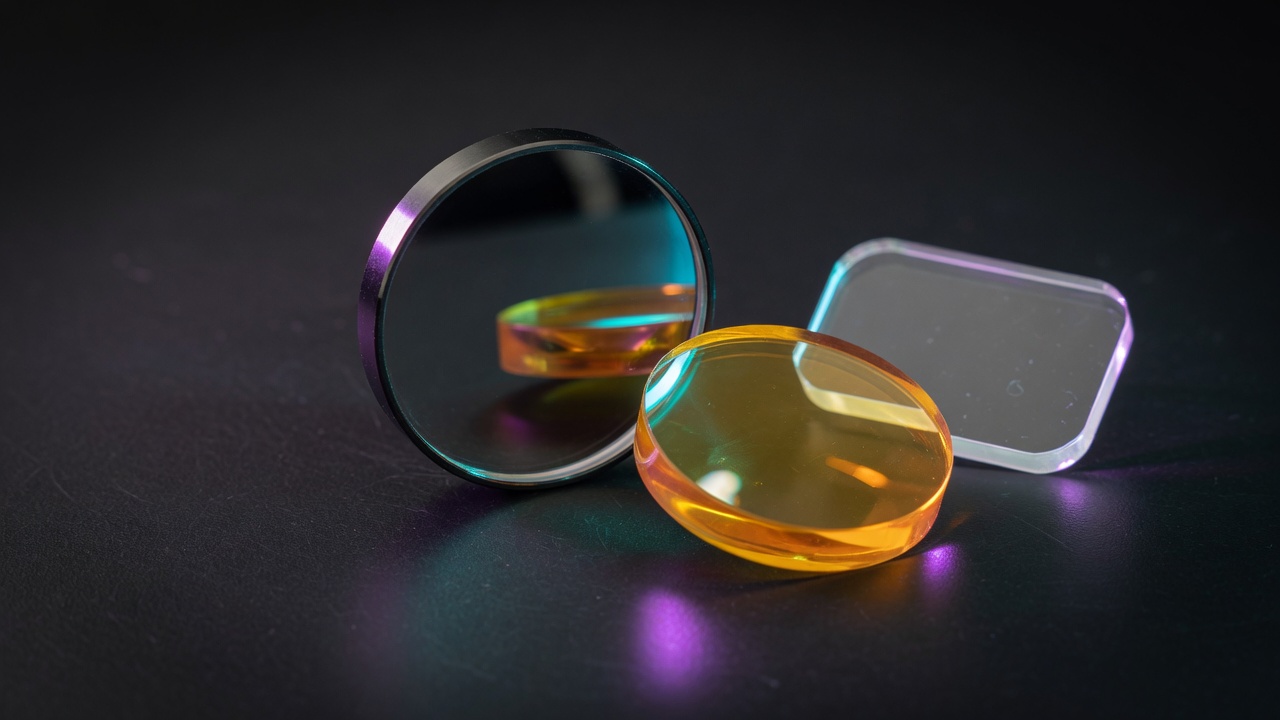

CO2 laser lenses, infrared windows and AR coatings — manufactured and coated here (five chambers, ISO 9001). ZnSe, germanium, silicon and specified laser optics quoted to print.
Dial λ.
Read the substrate.
Drag from deep ultraviolet to long-wave infrared. Every substrate we stock lights up the moment your wavelength falls inside its transmission window — with wavenumber and photon energy, so you can check it against your source.
Drag the marker — or jump to a laser line
Ranges are approximate useful transmission windows. Cut-on and cut-off shift with grade, thickness, temperature and coating design — confirm against a grade-specific datasheet before design freeze.
From UV glass to
long-wave semiconductors.
Sourced through a qualified global network, prepared for yield, and carried with full batch and lot traceability — whichever end of the spectrum you work in.
Zinc Selenide
CVD laser grade, ≤ 80 µm inclusions. The workhorse for CO₂ optics — low absorption at 10.6 µm and a visible alignment channel.
- n @ 10.6 µm2.4028
- BandsVIS · NIR · MWIR · LWIR
Germanium
Highest index of the common IR set — compact thermal optics. Specify operating temperature; transmission falls off with heat.
- n @ 10.6 µm4.0032
- BandsMWIR · LWIR
Silicon
Low density, high thermal conductivity. Preferred for weight-sensitive MWIR windows and laser mirror substrates.
- Density2.33 g/cm³
- BandsNIR · SWIR · MWIR
Chalcogenide Glass
Moldable, athermal glass with very low dn/dT — the choice when a thermal imager must hold focus across temperature.
- n @ 10.6 µm2.5109
- BandsNIR · SWIR · MWIR · LWIR
Copper Mirrors
Diamond-turned metal mirror substrates for high-power beam delivery, where no transmissive optic would survive the load.
- Reflectance> 98% @ 10.6 µm
- CoolingWater-cooled option
UV & Visible
Fused silica, calcium and magnesium fluoride, sapphire and N-BK7 — for alignment paths, beam combiners and visible channels.
- Deep UV from0.12 µm
- BandsUV · VIS · NIR
What engineers search.
What we quote.
CO2 laser lens, infrared window, germanium optic, AR coating at 10.6 µm — send the print, not a part-number guess.
CO2 laser lens
ZnSe focusing lenses, 10.6 µm AR, copper turning mirrors and fiber-laser windows for industrial heads.
Laser optics & IR windows
Lenses, windows, mirrors, filters and beamsplitters from UV through LWIR.
Germanium optics
Ge windows and lenses for 8–12 µm thermal imaging — high index, AR-coated.
ZnSe optics
CVD laser-grade zinc selenide for CO2 and broadband infrared.
AR coating 10.6 µm
Thin-film AR, broadband 2–12 µm and HR stacks in five coating chambers.
QCL & thermal lenses
Aspheric collimators and MWIR/LWIR camera assemblies, quoted from NA and band.
Optics, lasers, fibers
and instruments.
THz components, CO₂ and fiber laser optics, collimators, spectrometers and specialty fiber — same RFQ, same qualified supply chain.
Optical components
Lenses, windows, mirrors, filters, polarizers, beamsplitters, prisms and laser optics.
CO₂ & fiber laser optics
Focusing lenses, copper mirrors, cavity optics and nozzles for industrial cutting heads.
Terahertz optics
Windows, lenses, filters, polarizers and Golay detectors from MIR to millimetre-wave.
Collimators & IR assemblies
QCL aspheres, thermal camera lenses, fiber collimators and FTIR crystal optics.
Spectrometers
UV–VIS–NIR–Mid-IR modules, handheld Raman and FTIR accessories.
Fibers & components
IR and specialty fiber, couplers and delivery assemblies for sensing and lasers.
Precision optics · Ge · ZnSe · broadband substrates
Tolerances you can
hold at volume.
A first article is easy to make well. What matters for an OEM program is the two-thousandth part — same figure, same coating curve, same paperwork.
- Diameter tolerance±0.025 mm
- Surface quality40-20 · 20-10 on request
- Flatnessλ/4 typical · λ/10 achievable
- Parallelism< 1 arc-min
Material to coated component,
without handoff risk.
Three linked capabilities under one process control system — optimised for repeatability, yield control and batch traceability.
Raw Materials
Qualified global sourcing with yield optimisation, thickness preparation before fabrication, and lot-level traceability.
- Diameter5 – 200+ mm
- Thickness2 – 25+ mm
- FormsSlabs · Blanks
Fabricated Optics
Lenses, windows, mirrors and custom geometries produced in batch with full tooling capacity and scrap control.
- Diameter tol.±0.025 mm
- Surface quality40-20 / 20-10
- Parallelism< 1 arc-min
Coating & Quality
Five coating chambers, ISO 9001. Thin-film coating on infrared we manufacture or on optics you send in, with spectrophotometric verification.
- Transmission≥ 99.4% / surface
- Absorption≤ 0.2%
- LIDT (CO₂ CW)15–25 kW/cm²
How an OEM program runs.
Repeat production is a process problem, not a parts problem. We qualify once, then hold the recipe — so the hundredth batch matches the first article.
-
Sourcing & material qualification
Grade selection, inclusion criteria and yield-optimised blank layout against your print.
-
Precision fabrication
Grinding, polishing and edging to tolerance, with in-process metrology at each station.
-
Thin-film coating
Controlled deposition with witness samples; AR, broadband, dual-band or HR designs.
-
Inspection & qualification
Interferometric figure verification and spectrophotometric T/R against the approved curve.
-
Repeat production
Locked recipe, batch traceability and inventory-based fulfilment for recurring part numbers.
We coat your optics, too.
Send finished, uncoated optics for coating-only service. Incoming inspection covers surface quality, flatness and figure, edge and chamfer condition, and coating compatibility — only qualified parts proceed.
Where our optics run.
CO₂ laser systems
Focusing lenses, output windows and copper turning mirrors for 10.6 µm industrial sources.
Thermal imaging
Germanium and chalcogenide objectives for uncooled LWIR sensor modules.
Medical & diagnostics
Windows and sensor optics for analytical, imaging and therapeutic platforms.
Spectroscopy
Broadband windows and cell optics for FTIR and process analytics.
Substrate guidance for RFQ calls.
Thirteen engineering notes on ZnSe, Ge, ZnS, Si, fused silica, chalcogenides, CaF₂ and multi-band selection — written the way engineers argue on the call, not as a brochure.
Send the print.
Get a spec back.
Wavelength, quantity, drawing and lead time. We come back with substrate, coating design and pricing — not a brochure.
